CNPG Recipe 13 - Configuring PostgreSQL Synchronous Replication

·7 mins
kubernetes k8s cloudnativepg cnpg postgresql postgres dok data on kubernetes synchronous replication quorum priority any first data durability high availability synchronous_commit synchronous_standby_names write-ahead log WAL fsync remote_apply remote_write
Table of Contents

CloudNativePG 1.24 introduces a highly customisable approach to managing PostgreSQL synchronous replication through the new .spec.postgresql.synchronous stanza. In this article, I’ll guide you through configuring synchronous replication within a single Kubernetes cluster and across multiple clusters. I’ll explore quorum-based and priority-based replication methods, highlighting their benefits and trade-offs. Additionally, I’ll explain how to adjust the synchronous_commit setting to strike the right balance between data durability and performance.

CloudNativePG 1.24 introduces a highly customisable approach to managing synchronous replication in PostgreSQL clusters through the new .spec.postgresql.synchronous stanza.

This new method, which is the focus of this article, will eventually replace the existing approach using minSyncReplicas and maxSyncReplicas for quorum-based synchronous replication.

Key improvements #

Key improvements in CloudNativePG include:

  • Support for both quorum-based and priority-based synchronous replication
  • Enhanced control over the PostgreSQL synchronous_standby_names parameter (GUC)

In a typical synchronous replication setup within a single Cluster resource spanning multiple availability zones, quorum-based replication is highly effective. The operator automatically manages the synchronous_standby_names parameter based on active PostgreSQL instance pods, making it ideal for cloud environments.

However, when synchronous replication is required across external clusters, a priority-based approach may offer greater control and flexibility. This method allows for more fine-tuned customisation of synchronous_standby_names, but it also involves certain limitations and trade-offs. Such a configuration is typical in on-premise deployments where, instead of a stretched Kubernetes cluster, two separate single-AZ Kubernetes clusters are used.

Internal Synchronous Replication (Within the Cluster) #

To minimise the risk of data loss in a highly available Cluster managed by CloudNativePG, configuring synchronous replication is essential. In these environments, where all instances are treated equally, quorum-based synchronous replication is the recommended approach. It strikes a balance between data safety and performance, enhancing overall data durability.

PostgreSQL’s quorum-based synchronous replication ensures that a transaction commit only succeeds once its Write-Ahead Log (WAL) records have been replicated to a specified number of replicas. The replication order is irrelevant, as PostgreSQL self-regulates by acknowledging the fastest responders.

CloudNativePG simplifies managing the synchronous_standby_names parameter by keeping it automatically updated throughout the lifecycle of a PostgreSQL Cluster. The configuration dynamically adjusts based on the .spec.postgresql.synchronous stanza and the active instance pods, ensuring reliable replication management.

Here’s an example of a 3-instance Cluster with quorum-based synchronous replication enabled. In this setup, the cluster requires at least one replica to acknowledge transactions using the method: any and number: 1 settings.

apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: angus
spec:
  instances: 3

  storage:
    size: 1G

  postgresql:
    synchronous:
      method: any
      number: 1

Once deployed, CloudNativePG configures PostgreSQL’s synchronous_standby_names to ANY 1 ("angus-2", "angus-3"). This ensures that a transaction commit waits for acknowledgment from any one of the listed replicas. We’ll explore the concept of “receipt confirmation” ((successful acknowledgment)) later when discussing PostgreSQL’s synchronous_commit configuration option.

External Synchronous Replication (Beyond the Cluster) #

In some scenarios, data replication is required beyond a single Kubernetes cluster. This is especially relevant in on-premise deployments with two separate Kubernetes clusters in close proximity.

For instance, consider a CloudNativePG replica cluster named brian in a second Kubernetes cluster, replicating from a primary cluster called angus. We want to ensure the designated primary in the brian cluster, which replicates directly from angus-rw, participates in synchronous replication. Specifically, we aim to secure data in both another instance of the angus cluster and the designated primary of the brian cluster.

Assuming the brian replica cluster is correctly configured, you can achieve this architecture with the following manifest:

apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: angus
spec:
  instances: 3

  # <snip>
  postgresql:
    synchronous:
      method: first
      number: 2
      maxStandbyNamesFromCluster: 1
      standbyNamesPre:
      - brian
  # <snip>

This configuration will initially set synchronous_standby_names to FIRST 2 ("brian", "angus-2"). By setting maxStandbyNamesFromCluster to 1, we ensure that only one instance from the angus cluster (initially angus-2) is included in the synchronous_standby_names list, following brian, which is prioritised as specified in the standbyNamesPre section.

It’s important to understand that the angus cluster has no control over the brian cluster. It’s your responsibility to ensure that brian is properly monitored and consistently available to prevent blocking write operations on the primary.

Configuring synchronous_commit #

When committing a transaction, it’s crucial to ensure that data is securely written to disk in the Write-Ahead Log (WAL) and fsynced before returning success to the application.

In a high-availability cluster with a primary and multiple standbys, you can increase safety by ensuring the transaction data is durably stored on one or more replicas. PostgreSQL’s synchronous_commit setting controls this behaviour and works closely with the synchronous_standby_names parameter.

Notably, synchronous_commit can be overridden at the transaction level using the SET command, allowing for flexibility in durability based on the needs of individual transactions.

Note: In production environments, fsync should always be set to on.

Asynchronous Replication #

When synchronous_standby_names is empty (indicating asynchronous replication), synchronous_commit offers two options:

  • off: Success is returned immediately after writing to WAL on the primary, without guaranteeing data is written to disk. This increases the risk of data loss in case of failure.
  • on: Success is returned after WAL data is written and secured on disk (default behaviour). However, this ensures durability only on the primary.

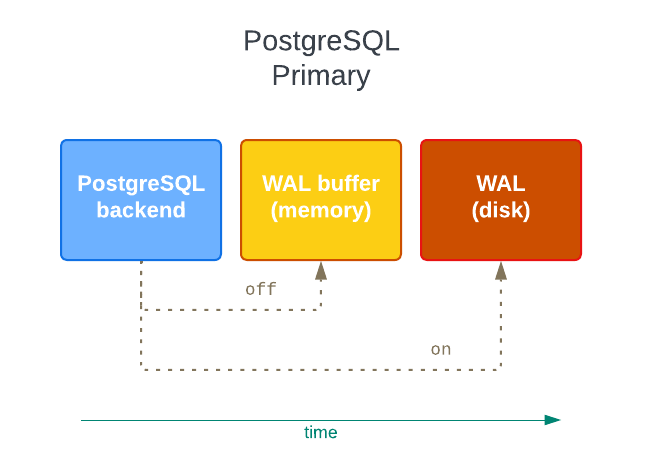

The diagram below illustrates the two levels of durability achievable with synchronous_commit in an asynchronous replication context.

<code>synchronous_commit</code> levels in asynchronous replication contexts

Synchronous Replication #

If synchronous_standby_names is not empty, synchronous_commit provides more options to control how and when the primary waits for standby acknowledgment. These options, arranged by increasing data durability, let you strike a balance between performance and reliability:

  • off: Same as in asynchronous replication.
  • local: Success is returned once the WAL is written and secured on disk on the primary. No confirmation from replicas is required, even in synchronous replication mode.
  • remote_write: Success is returned once the WAL is written to the memory of the required number of replicas (based on synchronous_standby_names), but before it is flushed to disk. This offers a trade-off between performance and durability, as data is transmitted to the replica but not yet fully committed on disk.
  • on: Success is returned after the WAL has been written and flushed to disk on both the primary and the required number of replicas (based on synchronous_standby_names). This ensures full durability across the cluster.
  • remote_apply: Success is returned only after the transaction has been applied (made visible) on the required number of synchronous replica(s). This provides the highest level of consistency, guaranteeing that any read on a synchronous replica will reflect the committed transaction. While it may impact write performance, it is beneficial during automated failover, as it ensures the standby replica being promoted has the most up-to-date transaction state, reducing recovery time.

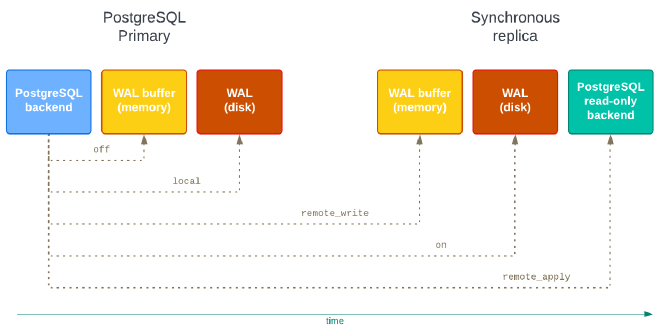

The diagram below demonstrates the durability levels achievable with synchronous_commit in synchronous replication scenarios, before “receipt confirmation” is sent to the primary.

<code>synchronous_commit</code> levels in synchronous replication contexts

For further information, refer to the PostgreSQL documentation.

Options such as remote_write, on, and remote_apply in PostgreSQL’s synchronous replication significantly reduce the risk of data loss in the event of a sudden primary failure. These settings ensure that transactional data is not only written to the primary but also securely stored on one or more replicas, effectively guaranteeing a recovery point objective (RPO) of zero in a highly available cluster. This means that no committed transaction will be lost during failover.

Note: While PostgreSQL’s synchronous replication provides strong consistency, it’s important to be aware of rare edge cases. For instance, a replica may send “receipt confirmation” to the primary, but if the primary fails immediately before passing this confirmation back to the application, there is a potential for the transaction to be perceived as incomplete or lost by the application. Despite these corner cases, synchronous replication remains one of the best tools for achieving high data durability.

Conclusions #

By now, you should have a better understanding of how to configure synchronous replication with CloudNativePG, both within a single Kubernetes cluster (internal) and across multiple clusters (external). While direct manipulation of synchronous_standby_names is unavailable, CloudNativePG’s synchronous stanza provides a flexible and powerful abstraction.

Depending on your required durability level, you can adjust the synchronous_commit setting and allow developers to fine-tune it at the transaction level to suit specific needs.

In the future, CloudNativePG plans to introduce node prioritisation, which would influence how the synchronous_standby_names list is built. This could enable priority-based synchronous replication within PostgreSQL clusters and open up new possibilities, such as serving consistent reads through services targeting primary and priority-based replicas. While this is still a vision, the current capabilities are more than sufficient for the vast majority of use cases.

Stay tuned for the upcoming recipes! For the latest updates, consider subscribing to my LinkedIn and Twitter channels.
